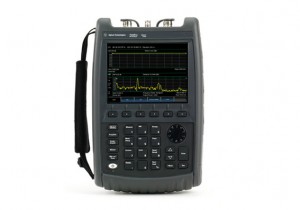

| Frequency |
5 kHz to 32 GHz |
| Frequency Options |
n/a |
| Maximum Analysis Bandwidth |
n/a |
| Bandwidth Options |
5 MHz |
| Maximum Real-Time Bandwidth |
n/a |
| Real-Time Bandwidth Options |
n/a |
| DANL @1 GHz |
-159 dBm |
| Phase Noise @1 GHz (10 kHz offset) |
-111 dBc/Hz |
| Phase Noise @1 GHz (30 kHz offset) |
-110 dBc/Hz |
| Phase Noise @1 GHz (1 MHz offset) |
-113 dBc/Hz |
| TOI @1 GHz (3rd Order Intercept) |
+13 dBm |
| Maximum Dynamic Range 3rd Order @1 GHz |
n/a |
| Instrument Type |
Combination Analyzer |
| Applications-General Purpose |
- AM/FM Tune and Listen
- Field Strength Measurement
- SCPI Code Compatibility
- Spectrogram
- Stimulus Response
|
| Applications-Cellular |
n/a |
| Applications-Wireless Connectivity |
n/a |
| Applications-Digital Video |
n/a |
| Performance Level |
◆◆◆◇◇◇ |
| Standard Attenuator Range |
30 dB |
| Standard Attenuator Step |
5 dB |
| Spur Free Dynamic Range |
n/a |
| Multi-Domain Bandwidth |
n/a |
| DANL @2 GHz, No Preamplifier |
n/a |
| DANL @10 GHz, No Preamplifier |
n/a |
| System Features |
- Built-In DC Source
- GPS Receiver – Internal and External
|
| Power Measurement Using USB Sensor |
- CW or Swept-Frequency
- Frequency-Offset
- RF Pulse Test with Peak Sensor
|
| Output Power |
4 dBm |
| Trace Noise |
0.004 dBrms |
| Number of Built-In Ports |
2 ports |
| Cable and Antenna Analyzer |
Yes |
| Spectrum Analyzer |
Yes |
| Vector Network Analyzer |
Yes |
| CAT/VNA Start Frequency |
300 kHz |
| SA Start Frequency |
5 kHz |
| Additional CAT/VNA Based Features |
- Vector Voltmeter
- Mixed-Mode S-Parameters
- TDR Cable Measurements
|
| Additional SA Based Features |
- Built-In Power Meter
- Extended Range Transmission Analysis (ERTA)
|
| Maximum Frequency |
32 GHz |
| Dynamic Range |
100 dB |
| Applications Available |
Yes |
| Applications |
- S-Parameters
- Distance-To-Fault
- Cable Trimming
- Return Loss
- Insertion Loss/Gain
|
| Components |
- Cables
- Antennas
- Amplifiers
- Filters
- 75 Ohm CATV Devices
|
| Best Speed at 201 Point, 1 Sweep |
180 ms |
| Handheld |
Yes |
